This 3 kW off grid solar system shows how effective a smaller, well designed setup can be. Bigger is not always better, especially when the system is matched closely to the property’s actual power use.
Mount Pleasant Off Grid Solar System
The owners use only a small portion of their available power overnight, while the 3 kW Outback inverter can provide 3 kW continuously.
This allows the fridge, water pump, lights and washing machine to operate at the same time.
The deep cycle battery bank provides more than three days of stored electrical energy, helping maintain reliable power through extended overcast weather.
Battery Recovery After Cloudy Weather
Once sunlight returns, the solar array can recharge the battery bank in less than 2.5 days, even while the property continues using power.
The battery bank remains at the centre of the system, providing the stored energy needed to keep essential household loads operating day and night.

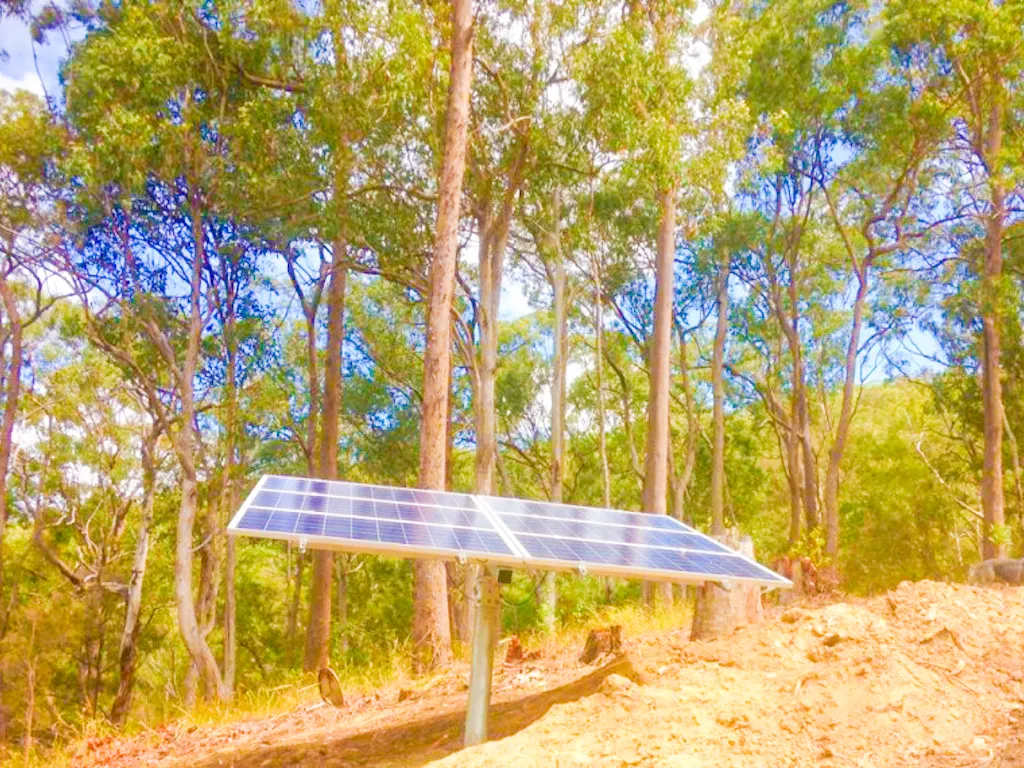

Post Mounted Solar Array
A Clenergy Post Mount PM6 was used to position the solar array away from the dwelling.
This type of mounting can work well in a bush setting where the home is shaded or where placing panels on the dwelling may affect its appearance.
The Midnite Solar charger was selected with future expansion in mind, allowing the solar array to be increased up to 3 kW.
System Components
- 6 x 250 watt Suntech solar panels
- Midnite Solar 88 amp MPPT solar charger
- Outback VFX 3024E 3000 watt and 85 amp inverter charger
- 12 x 700 amp hour Exide Energystore Gel deep cycle batteries
The Outback inverter charger can provide up to 5750 watts of surge power.
The Midnite Solar MPPT charger can provide 88 amps continuously and includes an easy to use display that records energy moving in and out of the system.
Control Board and Battery Bank
The control board brings together the Midnite Solar charger, Outback inverter and associated protection equipment in one accessible location.
The battery bank and control equipment were installed before the walls were fitted, allowing the system layout and cable runs to be planned clearly.
The completed system supplies the household’s essential power needs, including refrigeration, lighting, kitchen appliances, washing machine, computers, entertainment equipment, power tools and water pumping.
A Practical Alternative to Mains Connection
This system provided reliable electricity to a property where the nearest mains connection was more than one kilometre away.
It shows that a carefully designed smaller system can supply a household effectively without unnecessary oversizing.
