This off grid solar power system in the Byron Hinterland provides the essential electricity needs of a family of five living in the Northern Rivers region of New South Wales.
The owners chose off grid living as part of their commitment to a more sustainable lifestyle, and the 5 kW system was designed to support that choice without sacrificing everyday household comfort.
Byron Hinterland Off Grid Solar System
The system supplies the household with dependable power for everyday living while supporting the owners’ preference for a more self sufficient lifestyle.
The 5 kW configuration provides enough capacity for a family of five and is supported by battery storage, solar monitoring and automatic generator backup.
System Components

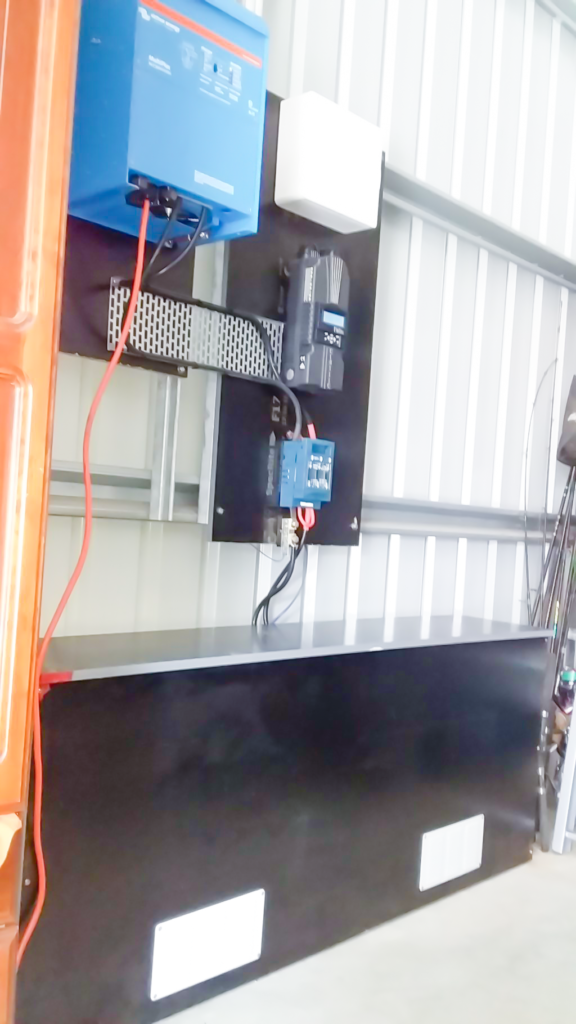

- Victron 5 kW MultiPlus inverter charger

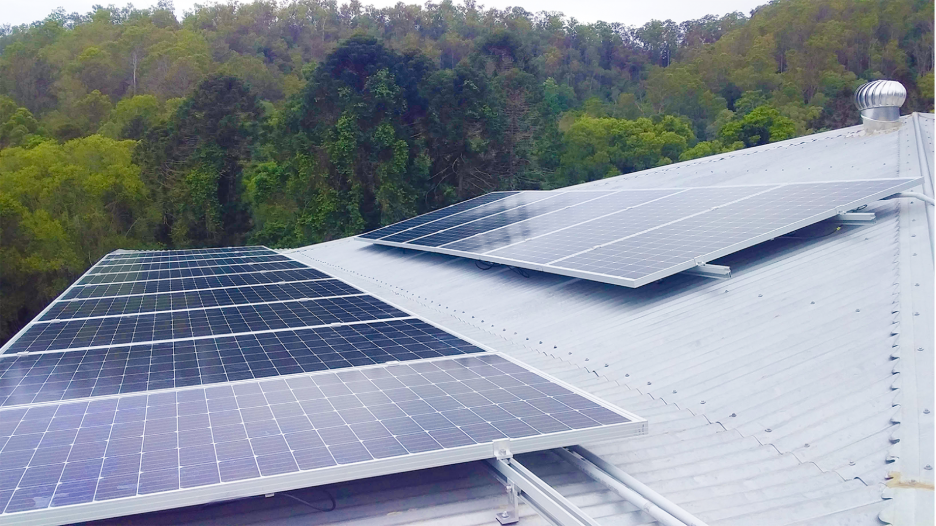

- 18 x 275 watt Suntech solar panels
- Midnite Solar Classic charge controller
- 830 amp hours of deep cycle battery storage
- System monitoring display
- 8 kVA automatic backup generator
The system components work together to provide reliable solar generation, battery charging and household power throughout changing weather conditions.
System Monitoring
The monitoring system allows the owners to see how much power the solar array is generating and how much energy remains available in the battery bank.
The display gives the household a clear view of current system performance, making it easier to understand energy use and battery capacity at any time.
Automatic Generator Backup
An 8 kVA generator is configured to start automatically if extended overcast weather reduces the available battery capacity.
The starting point is based on the remaining battery capacity and can be selected by the customer or recommended by the off grid system designer.
When the battery bank reaches the selected level, the charge controller signals the generator to start. Once the batteries are fully recharged, the generator stops automatically.
Talk To Us About Your Off Grid System
Every household has different power requirements and lifestyle priorities. We can help design an off grid system around your family size, energy use, battery storage needs, monitoring preferences and generator backup requirements.
